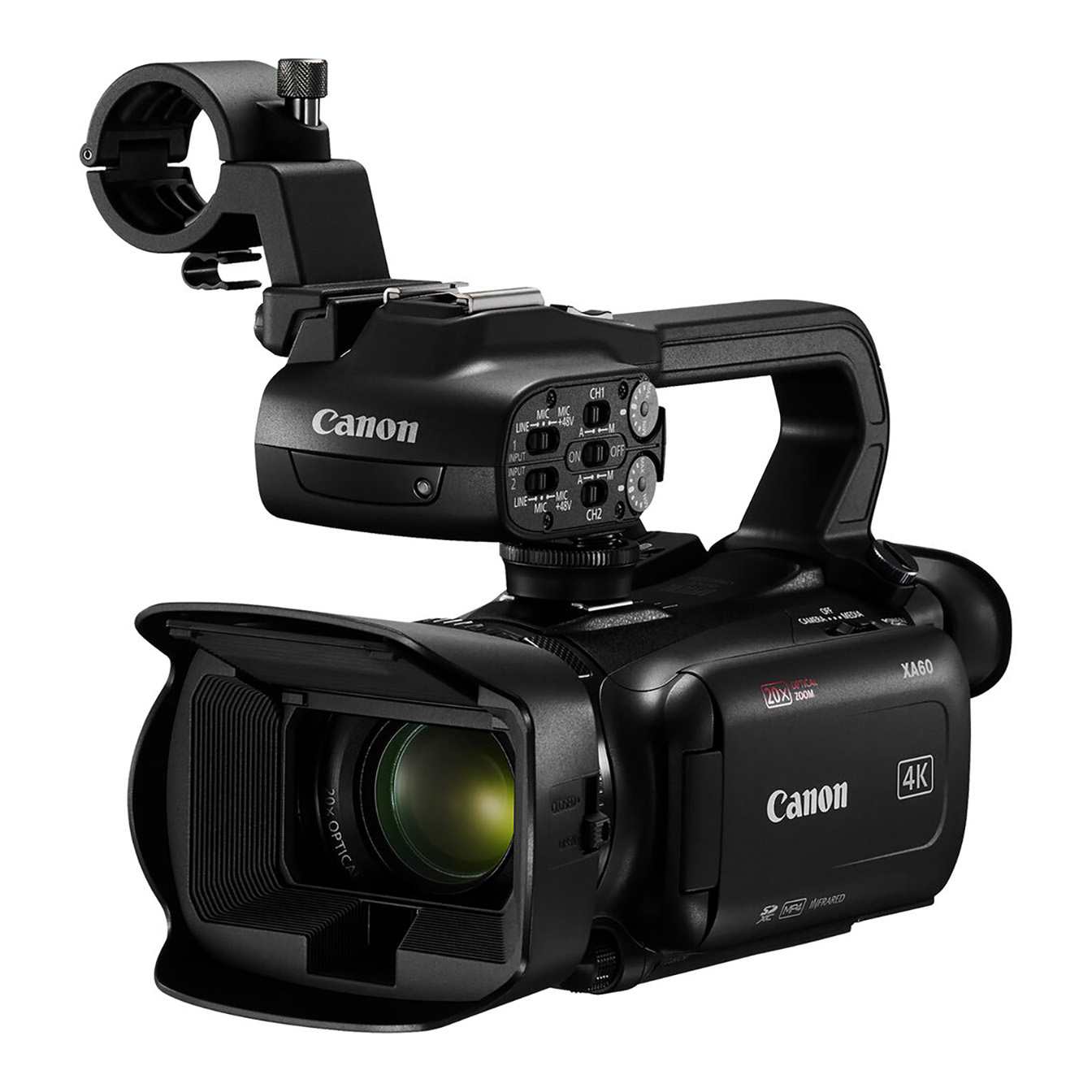

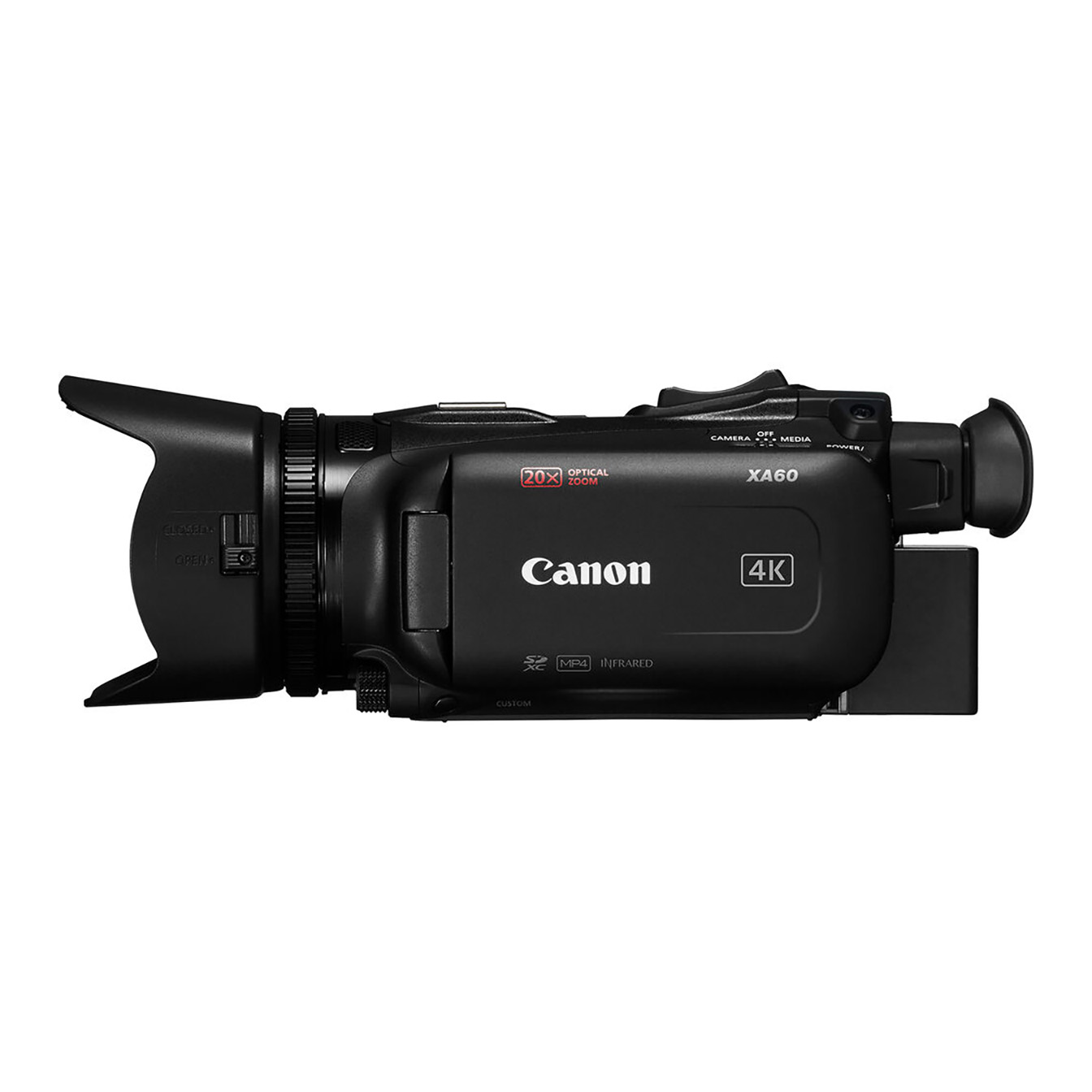

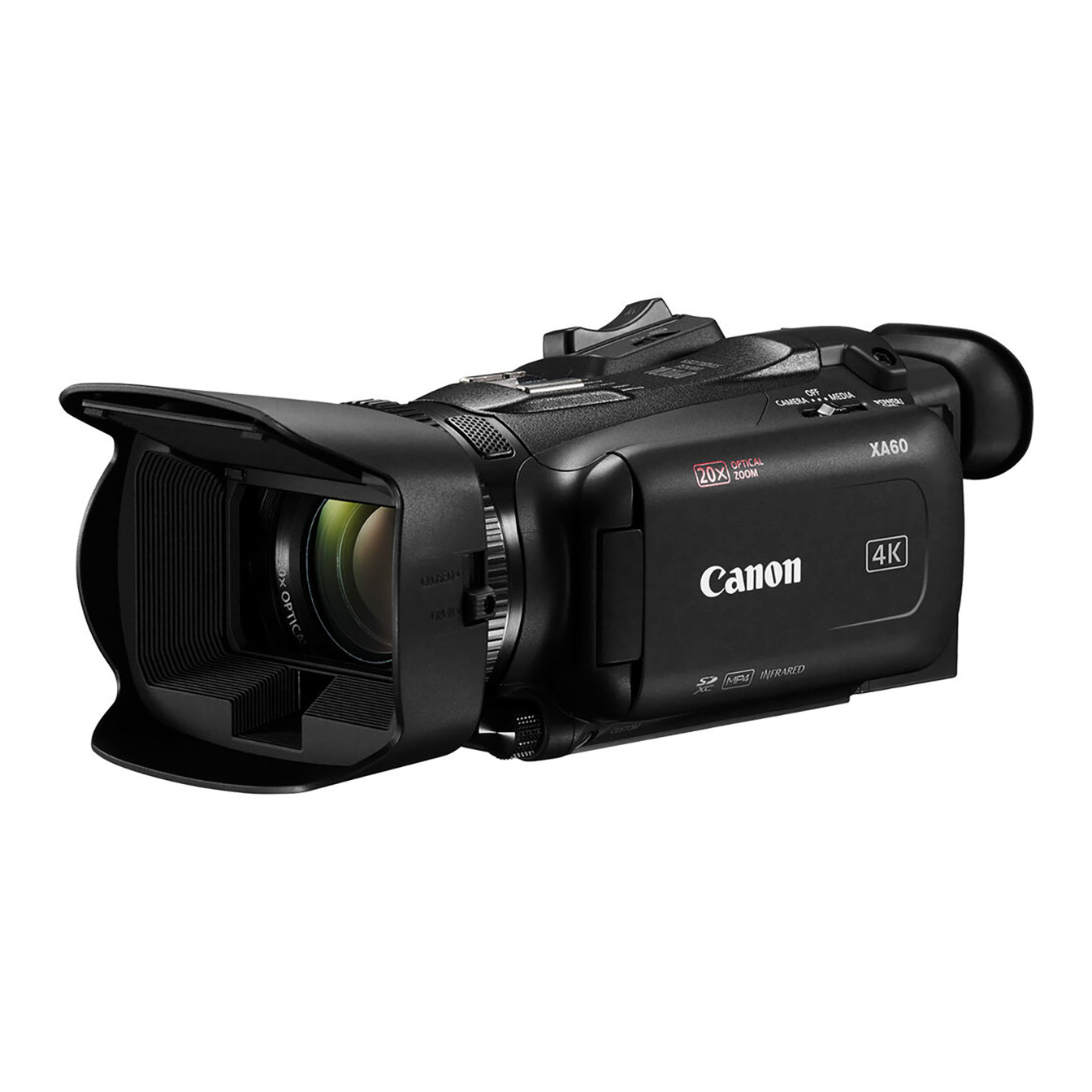

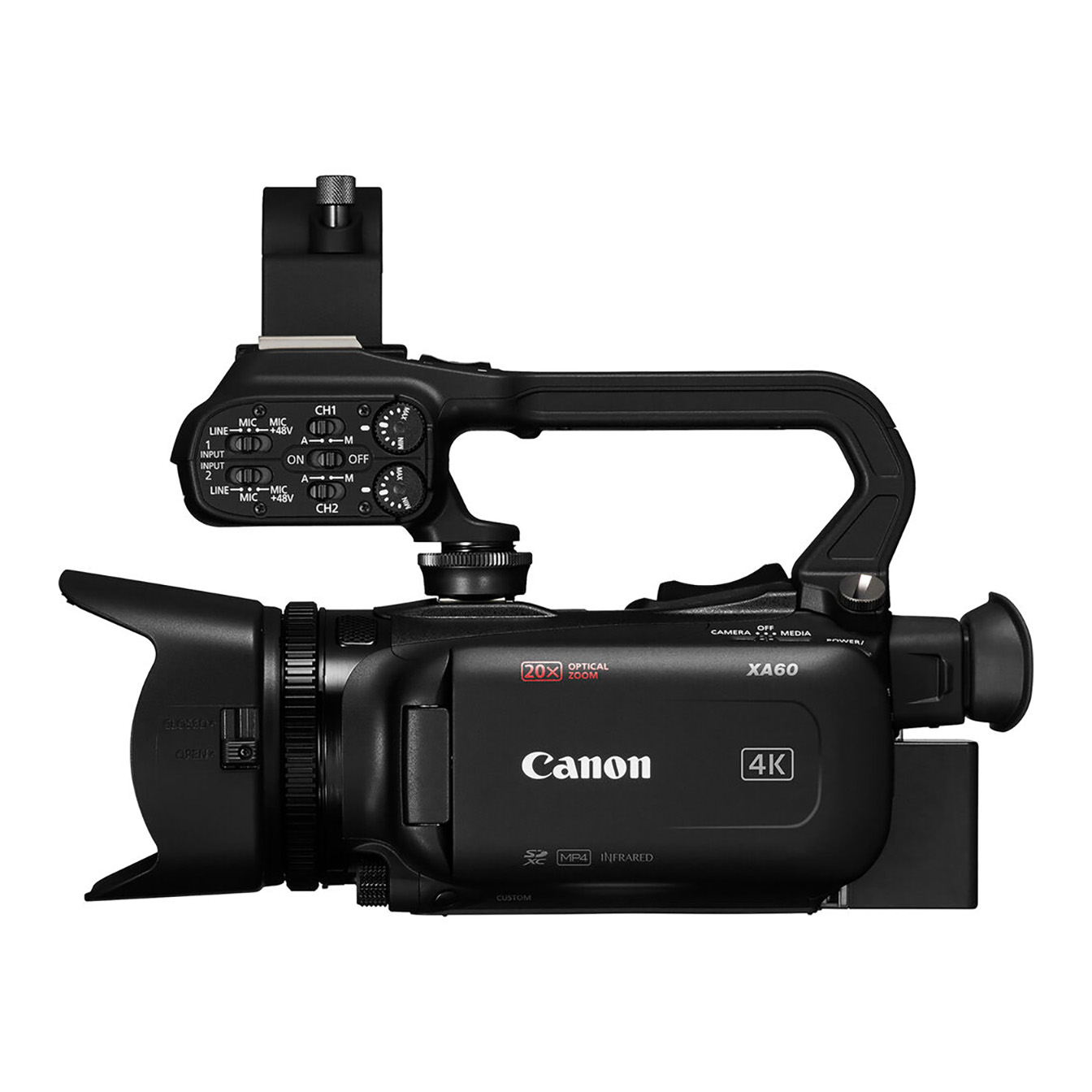

The Canon XA60 Professional UHD 4K Camcorder is a compact and lightweight camera that shares many similarities with its XA45 predecessor. It offers UHD 4K capture, a 1/2.3″ CMOS sensor, two XLR audio inputs, and one mini-HDMI output, making it suitable for ENG-style documentary or journalism productions. This streamlined model introduces a larger 3.5mm LCD capacitive touchscreen display, a higher resolution tiltable 0.36″ OLED EVF, XF-AVC and MP4 recording formats, OSD metadata recording, and fast USB Type-C video-only output with UVC support for livestreaming to a computer.
The lens features an integrated 20x 4K/HD optical zoom and an eight-bladed circular iris for natural-looking highlights. The camera offers a range of pro-style features, including Hybrid, Normal, Face Only, Manual Focus, Instant, and Canon’s Medium autofocus modes. It supports fast- and slow-motion recording, provides full manual control, and incorporates optical and electronic image stabilization. The camera is equipped with a 3.5″ touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor that ensures high sensitivity and low noise performance.
The XA60 records UHD 4K30 and Full HD 1080p60 videos to dual SD card slots, allowing for automatic switching between cards and simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps through its mini-HDMI output. On the audio side, it supports up to four channels of LPCM audio in 720p mode with manual or automatic recording levels. The camera includes two XLR inputs with phantom power and a 3.5mm stereo mini input, as well as a built-in stereo microphone and a headphone jack.
Key Features:
– Canon 4K Sensor and DIGIC DV6 image processor for sharp UHD images and cinematic out-of-focus highlights.
– On-Screen Display (OSD) “Time Stamp” Recording that embeds important data into each frame for legal and law enforcement videographers.
– UVC Livestreaming via USB Type-C for streaming HD video directly to a computer (audio output through USB not supported).
– Professional Audio Controls with two XLR terminals and 4-channel linear PCM audio options.
– 4K 20x Optical Zoom Lens with a wide-angle to telephoto reach, along with 800x digital zoom and Canon’s Dynamic IS 5-axis image stabilization.
– Fast, Precise Focusing with adjustable speeds, Hybrid AF system, touch-focus on the LCD, and features like Face Detection AF and Face Tracking.
– XF-AVC and MP4 recording formats for flexible options, including high-bitrate 4K UHD and Full HD recording.
– Dual SD card slots for backup and relay recording, Infrared mode, and Slow Motion (5x HD) and Fast Motion (4K/Full HD up to 1200x) capabilities.
– Professional Input and Output options, including simultaneous recording to dual SD cards and color matching with other Canon cameras using the custom picture menu.
